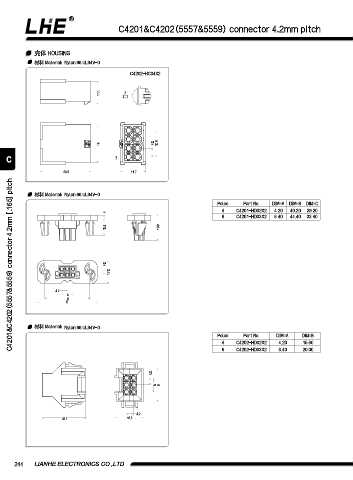

C4201&C4202(5557&5559) connector 4.2mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0

C4202-HC04X2

11.1 Z
4 : 1

18 4.2 12.6

C Z

23.9 11.7
C4201&C4202(5557&5559) connector 4.2mm [.165] pitch
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B DIM=C
4 C4201-HD02X2 4.20 40.20 29.20
4
6 C4201-HD03X2 8.40 44.40 33.40
10.8 19.9

4.2
17.2

4.2
A
C
B

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
4 C4202-HD02X2 4.20 15.80
6 C4202-HD03X2 8.40 20.00

4.2

A B

4.2
25.8 16.8

244 LIANHE ELECTRONICS CO.,LTD.
