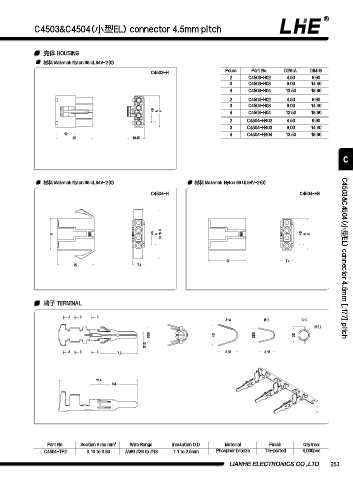

C4503&C4504(⼩型EL) connector 4.5mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-2(0)
C4503-H Poles Part No. DIM=A DIM=B
2 C4503-H02 4.50 9.90
3 C4503-H03 9.00 14.40
4 C4503-H04 13.50 18.90
2 C4504-H02 4.50 9.90
3 C4504-H03 9.00 14.40
4.5 A B 4 C4504-H04 13.50 18.90
2 C4504-HB02 4.50 9.90
3 C4504-HB03 9.00 14.40
12 4 C4504-HB04 13.50 18.90
22 10.45

C

材料 Material: Nylon 66 UL94V-2(0) 材料 Material: Nylon 66 UL94V-2(0)
C4504-H C4504-HB

B 4.5 A B+10.6 4.5 A B

22 7.4 C4503&C4504(⼩型EL) connector 4.5mm [.177] pitch
22 7.4

端⼦ TERMINAL

A B C
A-A B-B C-C
2.2
3.35 4.2 2.85 3.2
1.3

A B C 7.2 3.95 3.15

15.4
9.4

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4504-TP2 0.13 to 0.83 AWG #26 to #18 1.1 to 2.5mm Phosphor bronze Tin-plated 4,000pcs

LIANHE ELECTRONICS CO.,LTD. 253
