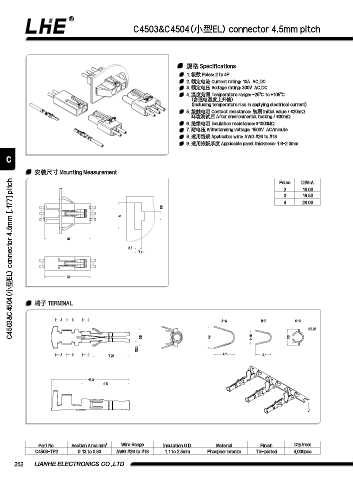

C4503&C4504(⼩型EL) connector 4.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 4P
2. 额定电流 Current rating: 10A AC,DC
3. 额定电压 Voltage rating: 300V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适⽤线规 Applicable wire: AWG #26 to #18
9. 适⽤嵌板厚度 Applicable panel thickness: 1.6~2.0mm

C

安装尺⼨ Mounting Measurement
C4503&C4504(⼩型EL) connector 4.5mm [.177] pitch
Poles DIM=A
2 15.00
3 19.50
4 24.00
6.5
A

34
5.5
7.4

34

端⼦ TERMINAL

A B C A-A B-B C-C
2.25
3.6 4.4 2.85 3.2

2.1

A B C 7.25 4.1 3.1

15.3
9.5

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4503-TP2 0.13 to 0.83 AWG #26 to #18 1.1 to 2.5mm Phosphor bronze Tin-plated 4,000pcs

252 LIANHE ELECTRONICS CO.,LTD.
