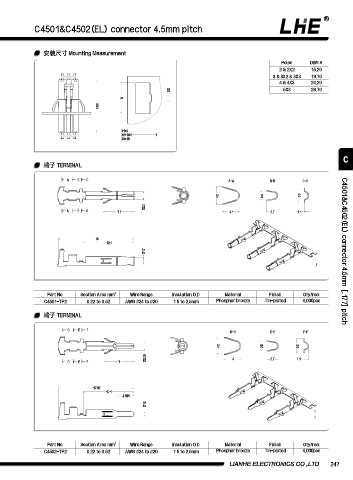

C4501&C4502(EL) connector 4.5mm pitch

安装尺⼨ Mounting Measurement
Poles DIM=A
2 & 2X2 15.20
3 & 3X2 & 3X3 19.70
4 & 4X3 24.20
5.2 5X3 28.70
A
39.2

X1=6
X2= 10.5 1
X3=15

C
端⼦ TERMINAL

A B C
A-A B-B C-C

4.2 2.4 3.3
2.1
A B C 7.3 4.1 2.7 1.1

18
12.2
1.7
Ø C4501&C4502(EL) connector 4.5mm [.177] pitch

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4501-TP2 0.22 to 0.52 AWG #24 to #20 1.5 to 2.5mm Phosphor bronze Tin-plated 4,000pcs

端⼦ TERMINAL

D E F
D-D E-E F-F
4.2 2.5 3.3
2.15 4 2.7 1.1
D E F 7 Ø

17.85
12.1
4 MIN
1.3
Ø

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4502-TP2 0.22 to 0.52 AWG #24 to #20 1.5 to 2.5mm Phosphor bronze Tin-plated 4,000pcs

LIANHE ELECTRONICS CO.,LTD. 247
