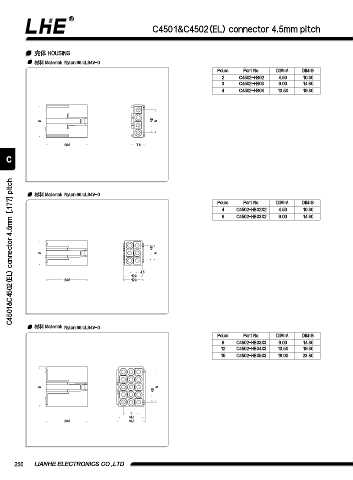

C4501&C4502(EL) connector 4.5mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C4502-HB02 4.50 10.30
3 C4502-HB03 9.00 14.80
4 C4502-HB04 13.50 19.30

4.5
B A

24.6 7.8

C

C4501&C4502(EL) connector 4.5mm [.177] pitch
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
4 C4502-HB02X2 4.50 10.30
6 C4502-HB03X2 9.00 14.80

4.5
B A

4.5
10.3
24.6 12.3

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
9 C4502-HB03X3 9.00 14.80
12 C4502-HB04X3 13.50 19.30
15 C4502-HB05X3 18.00 23.80

B A
4.5

9
14.8
24.6 16.8

250 LIANHE ELECTRONICS CO.,LTD.
