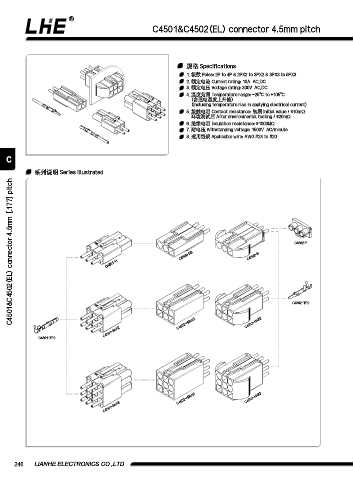

C4501&C4502(EL) connector 4.5mm pitch

规格 Specifications
1. 极数 Poles: 2P to 4P & 2PX2 to 3PX2 & 3PX3 to 5PX3
2. 额定电流 Current rating: 10A AC,DC
3. 额定电压 Voltage rating: 300V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适⽤线规 Applicable wire: AWG #24 to #20

C

系列说明 Series illustrated
C4501&C4502(EL) connector 4.5mm [.177] pitch

C4502-F
C4502-HB C4502-H
C4501-H

C4502-TP2

C4502-HBnX2 C4502-HnX2
C4501-HnX2

C4501-TP2

C4502-HBnX3 C4502-HnX3
C4501-HnX3
