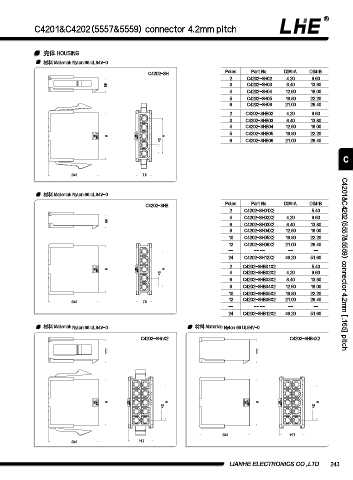

C4201&C4202(5557&5559) connector 4.2mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0

C4202-SH Poles Part No. DIM=A DIM=B
2 C4202-SH02 4.20 9.60
6.9 3 C4202-SH03 8.40 13.80
4 C4202-SH04 12.60 18.00
5 C4202-SH05 16.80 22.20
6 C4202-SH06 21.00 26.40
2 C4202-SHB02 4.20 9.60
3 C4202-SHB03 8.40 13.80
4 C4202-SHB04 12.60 18.00
5 C4202-SHB05 16.80 22.20
B A
4.2 6 C4202-SHB06 21.00 26.40

C

23.9 7.5

材料 Material: Nylon 66 UL94V-0

C4202-SHB Poles Part No. DIM=A DIM=B
2 C4202-SH01X2 5.40
4 C4202-SH02X2 4.20 9.60
6.9 6 C4202-SH03X2 8.40 13.80
8 C4202-SH04X2 12.60 18.00
10 C4202-SH05X2 16.80 22.20
12 C4202-SH06X2 21.00 26.40
-- -- -- -- --
24 C4202-SH12X2 46.20 51.60
2 C4202-SHB01X2 5.40 C4201&C4202(5557&5559) connector 4.2mm [.165] pitch
B A
4.2 4 C4202-SHB02X2 4.20 9.60
6 C4202-SHB03X2 8.40 13.80
8 C4202-SHB04X2 12.60 18.00
10 C4202-SHB05X2 16.80 22.20
12 C4202-SHB06X2 21.00 26.40
23.9 7.5
-- -- -- -- --
24 C4202-SHB12X2 46.20 51.60

材料 Material: Nylon 66 UL94V-0 材料 Material: Nylon 66 UL94V-0
C4202-SHnX2 C4202-SHBnX2

11.1 11.1

B A B A
4.2 4.2

23.9 11.7
23.9 11.7
