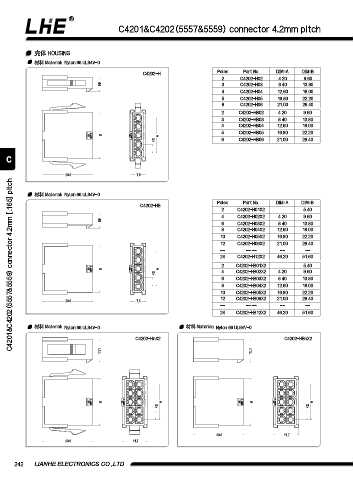

C4201&C4202(5557&5559) connector 4.2mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0

C4202-H Poles Part No. DIM=A DIM=B
2 C4202-H02 4.20 9.60
6.9 3 C4202-H03 8.40 13.80
4 C4202-H04 12.60 18.00
5 C4202-H05 16.80 22.20
6 C4202-H06 21.00 26.40
2 C4202-HB02 4.20 9.60
3 C4202-HB03 8.40 13.80
4 C4202-HB04 12.60 18.00
5 C4202-HB05 16.80 22.20
B A
4.2 6 C4202-HB06 21.00 26.40

C

23.9 7.5
C4201&C4202(5557&5559) connector 4.2mm [.165] pitch
材料 Material: Nylon 66 UL94V-0

C4202-HB Poles Part No. DIM=A DIM=B
2 C4202-H01X2 5.40
4 C4202-H02X2 4.20 9.60
6.9 6 C4202-H03X2 8.40 13.80
8 C4202-H04X2 12.60 18.00
10 C4202-H05X2 16.80 22.20
12 C4202-H06X2 21.00 26.40
-- -- -- -- --
24 C4202-H12X2 46.20 51.60
2 C4202-HB01X2 5.40
B A
4.2 4 C4202-HB02X2 4.20 9.60
6 C4202-HB03X2 8.40 13.80
8 C4202-HB04X2 12.60 18.00
10 C4202-HB05X2 16.80 22.20
12 C4202-HB06X2 21.00 26.40
23.9 7.5
-- -- -- -- --
24 C4202-HB12X2 46.20 51.60

材料 Material: Nylon 66 UL94V-0 材料 Material: Nylon 66 UL94V-0
C4202-HnX2 C4202-HBnX2

11.1 11.1

B A B A
4.2 4.2

23.9 11.7
23.9 11.7

242 LIANHE ELECTRONICS CO.,LTD.
