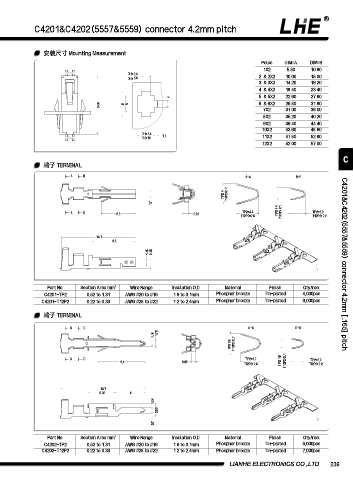

C4201&C4202(5557&5559) connector 4.2mm pitch

安装尺⼨ Mounting Measurement
Poles DIM=A DIM=B
1X2 5.80 10.80
X1=3.3
X2= 5.6 2 & 2X2 10.00 15.00
3 & 3X2 14.20 19.20
4 & 4X2 18.40 23.40
5 & 5X2 22.60 27.60
4
34.6 B A 6 & 6X2 26.80 31.80
7X2 31.00 36.00
8X2 35.20 40.20
9X2 39.40 44.40
10X2 43.60 48.60
X1=5.8
X2= 10 1.6 11X2 47.80 52.80
12X2 52.00 57.00

C
端⼦ TERMINAL

A B A-A B-B

4
TP2= T12P2=2.7
1.7
A B 6.8 0.82 TP2= 4.4 TP2=2.4 T12P2=2.1 TP2= 2.9
T12P2=2.6 T12P2=2.2

14.7
8.6
1.65 2.05 C4201&C4202(5557&5559) connector 4.2mm [.165] pitch

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4201-TP2 0.52 to 1.31 AWG #20 to #16 1.9 to 3.1mm Phosphor bronze Tin-plated 4,000pcs
C4201-T12P2 0.22 to 0.33 AWG #28 to #22 1.2 to 2.4mm Phosphor bronze Tin-plated 9,000pcs

端⼦ TERMINAL

C D C-C D-D
1.14 1.75
3.8
TP2= T12P2=2.7

C D TP2=3.7 TP2= 2.3
9.4 0.85 TP2=1.9 T12P2=2.1
T12P2=2.6 T12P2=2.2

16.7
5.35 6
1.14
2.53

0.7

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4202-TP2 0.52 to 1.31 AWG #20 to #16 1.9 to 3.1mm Phosphor bronze Tin-plated 5,000pcs
C4202-T12P2 0.22 to 0.33 AWG #28 to #22 1.2 to 2.4mm Phosphor bronze Tin-plated 7,000pcs

LIANHE ELECTRONICS CO.,LTD. 239
