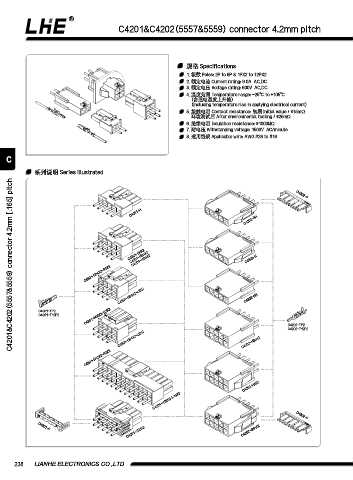

C4201&C4202(5557&5559) connector 4.2mm pitch

规格 Specifications
1. 极数 Poles: 2P to 6P & 1PX2 to 12PX2
2. 额定电流 Current rating: 9.0A AC,DC
3. 额定电压 Voltage rating: 600V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤15mΩ
环境测试后 After environmental testing / ≤25mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适⽤线规 Applicable wire: AWG #28 to #16

C

系列说明 Series illustrated
C4201&C4202(5557&5559) connector 4.2mm [.165] pitch

C4201-H C4202-F
C4202-SH

C4201-HnX2 C4202-H
C4201-HBnX2
C4201-HCnX2
C4201-H04X2-R1X2

C4201-H04X2-L3X2 C4202-HB

C4201-H04X2-R2X2
C4201-TP2
C4201-T12P2
C4202-TP2
C4202-T12P2
C4201-H04X2-L2X2 C4202-HBnX2

C4201-H12X2-R2X2

C4202-HnX2
C4201-H12X2-L10X2 C4202-F

C4201-SHnX2 C4202-SHnX2
C4201-F
