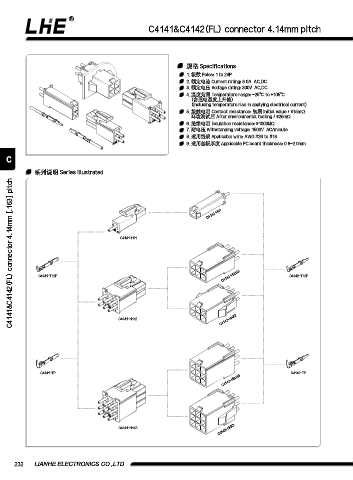

C4141&C4142(FL) connector 4.14mm pitch

规格 Specifications
1. 极数 Poles: 1 to 24P
2. 额定电流 Current rating: 8.0A AC,DC
3. 额定电压 Voltage rating: 300V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤15mΩ
环境测试后 After environmental testing / ≤25mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适⽤线规 Applicable wire: AWG #26 to #18
9. 适⽤基板厚度 Applicable PC board thickness: 0.8~2.0mm

C

系列说明 Series illustrated
C4141&C4142(FL) connector 4.14mm [.163] pitch

C4142-H01

C4141-H01

C4141-T12P C4142-HBnX2 C4142-T12P

C4142-HnX2
C4141-HnX2

C4141-TP C4142-TP
C4142-HBnX3

C4142-HnX3
C4141-HnX3
