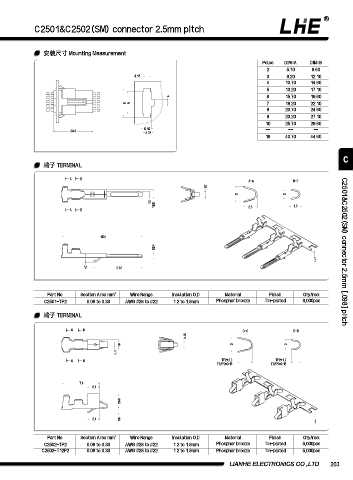

C2501&C2502(SM) connector 2.5mm pitch

安装尺⼨ Mounting Measurement
Poles DIM=A DIM=B
2 5.70 9.60
4.15 3 8.20 12.10
4 10.70 14.60
5 13.20 17.10
4 6 15.70 19.60
B A 7 18.20 22.10
8 20.70 24.60
9 23.20 27.10
10 25.70 29.60
5.15
23.3 6.75 -- -- --
16 40.70 44.60

C
端⼦ TERMINAL

A B
A-A B-B
0.7
3 2
1.1
1.85 2.6 1.8
A B

15.9
0.64 C2501&C2502(SM) connector 2.5mm [.098] pitch

1.7 9.65

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2501-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.8mm Phosphor bronze Tin-plated 8,000pcs

端⼦ TERMINAL

C D C-C D-D
0.65
1.9 3 2
1.1
C D TP2= 2.9 TP2= 1.7
T12P2=3.15 T12P2=2.15

7.4
2.4

2.95

2.4 0.8

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2502-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.8mm Phosphor bronze Tin-plated 5,000pcs
C2502-T12P2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.8mm Phosphor bronze Tin-plated 5,000pcs

LIANHE ELECTRONICS CO.,LTD. 203
