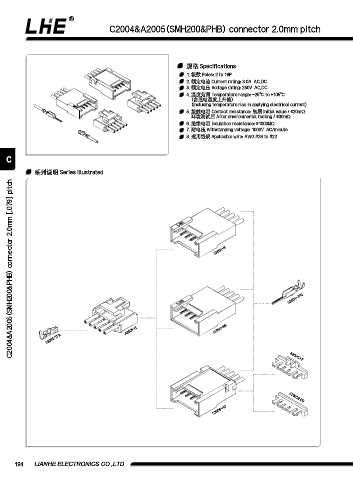

C2004&A2005(SMH200&PHB) connector 2.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
8. 适⽤线规 Applicable wire: AWG #28 to #22

C

系列说明 Series illustrated
C2004&A2005(SMH200&PHB) connector 2.0mm [.079] pitch

C2004-H

C2004-TP2

A2005-H C2004-HB
A2005-TP2 A20012-F

C2004-HC A20012-FB

194 LIANHE ELECTRONICS CO.,LTD.
