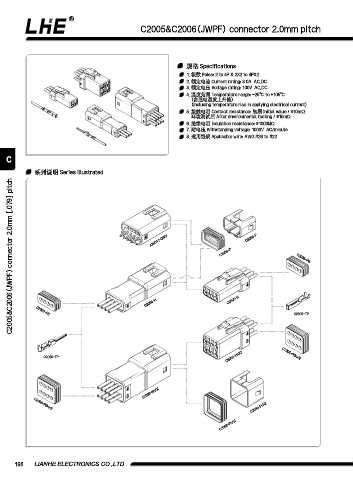

C2005&C2006(JWPF) connector 2.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 4P & 2X2 to 4PX2
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 100V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤15mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
8. 适⽤线规 Applicable wire: AWG #26 to #22

C

系列说明 Series illustrated
C2005&C2006(JWPF) connector 2.0mm [.079] pitch

A20011-DWV C2006-F

C2006-P C2006-PB

C2006-H C2005-H

C2005-TP
C2006-PB

C2006-TP C2005-HnX2 C2006-PBnX2

C2006-HnX2

C2006-FnX2
C2006-PBnX2
C2006-PnX2
