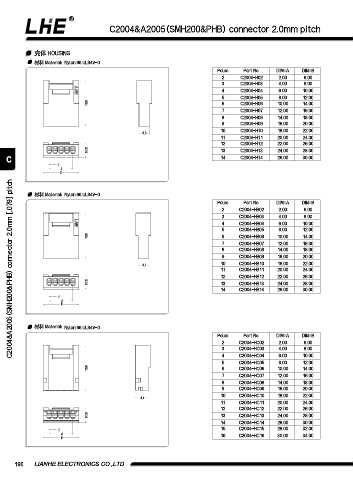

C2004&A2005(SMH200&PHB) connector 2.0mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2004-H02 2.00 6.00
3 C2004-H03 4.00 8.00
4 C2004-H04 6.00 10.00
5 C2004-H05 8.00 12.00
15.5 6 C2004-H06 10.00 14.00
7 C2004-H07 12.00 16.00
8 C2004-H08 14.00 18.00
9 C2004-H09 16.00 20.00
10 C2004-H10 18.00 22.00
3.6
11 C2004-H11 20.00 24.00
12 C2004-H12 22.00 26.00
5.12 13 C2004-H13 24.00 28.00
C 14 C2004-H14 26.00 30.00
2
A
B
C2004&A2005(SMH200&PHB) connector 2.0mm [.079] pitch
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2004-HB02 2.00 6.00
3 C2004-HB03 4.00 8.00
4 C2004-HB04 6.00 10.00
5 C2004-HB05 8.00 12.00
15.5 6 C2004-HB06 10.00 14.00
7 C2004-HB07 12.00 16.00
8 C2004-HB08 14.00 18.00
9 C2004-HB09 16.00 20.00
10 C2004-HB10 18.00 22.00
3.6
11 C2004-HB11 20.00 24.00
12 C2004-HB12 22.00 26.00
5.12 13 C2004-HB13 24.00 28.00
14 C2004-HB14 26.00 30.00
2
A
B

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2004-HC02 2.00 6.00
3 C2004-HC03 4.00 8.00
4 C2004-HC04 6.00 10.00
5 C2004-HC05 8.00 12.00
15.5 6 C2004-HC06 10.00 14.00
7 C2004-HC07 12.00 16.00
8 C2004-HC08 14.00 18.00
9 C2004-HC09 16.00 20.00
10 C2004-HC10 18.00 22.00
4.4
11 C2004-HC11 20.00 24.00
12 C2004-HC12 22.00 26.00
5.15 13 C2004-HC13 24.00 28.00
14 C2004-HC14 26.00 30.00
2 15 C2004-HC15 28.00 32.00
A
B 16 C2004-HC16 30.00 34.00

196 LIANHE ELECTRONICS CO.,LTD.
