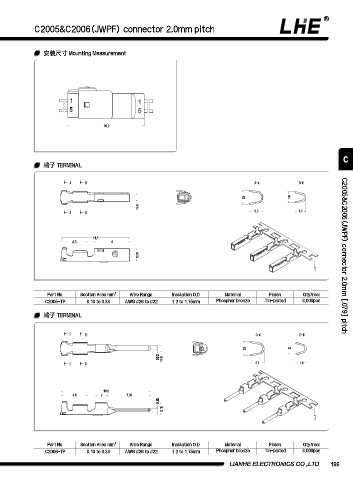

C2005&C2006(JWPF) connector 2.0mm pitch

安装尺⼨ Mounting Measurement

30.2

C
端⼦ TERMINAL

A B A-A B-B

2.4 1.9
1.45
A B 2.3 1.8

11.6
4.5 6
2.15 C2005&C2006(JWPF) connector 2.0mm [.079] pitch

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2005-TP 0.13 to 0.33 AWG #26 to #22 1.2 to 1.75mm Phosphor bronze Tin-plated 8,000pcs

端⼦ TERMINAL

C D C-C D-D

2.4 2
0.82 1.45
C D 2.3 1.8

15.2
4.5 2 7.35
0.62
2.15

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2006-TP 0.13 to 0.33 AWG #26 to #22 1.2 to 1.75mm Phosphor bronze Tin-plated 8,000pcs
