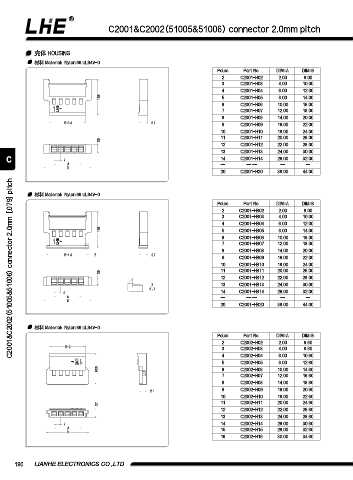

C2001&C2002(51005&51006) connector 2.0mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2001-H02 2.00 8.00
3 C2001-H03 4.00 10.00
4 C2001-H04 6.00 12.00
10.8 5 C2001-H05 8.00 14.00
6 C2001-H06 10.00 16.00
7 C2001-H07 12.00 18.00
8 C2001-H08 14.00 20.00
B-3.4 2.7
9 C2001-H09 16.00 22.00
10 C2001-H10 18.00 24.00
2.5 11 C2001-H11 20.00 26.00
12 C2001-H12 22.00 28.00
13 C2001-H13 24.00 30.00
C 2 14 C2001-H14 26.00 32.00
A -- -- -- -- --
B
20 C2001-H20 38.00 44.00
C2001&C2002(51005&51006) connector 2.0mm [.079] pitch
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2001-HB02 2.00 8.00
3 C2001-HB03 4.00 10.00
4 C2001-HB04 6.00 12.00
10.8 5 C2001-HB05 8.00 14.00
6 C2001-HB06 10.00 16.00
7 C2001-HB07 12.00 18.00
8 C2001-HB08 14.00 20.00
B-1.4 Z 2.7
9 C2001-HB09 16.00 22.00
10 C2001-HB10 18.00 24.00
11 C2001-HB11 20.00 26.00
2.5
12 C2001-HB12 22.00 28.00
Z 13 C2001-HB13 24.00 30.00
6 : 1
2 14 C2001-HB14 26.00 32.00
A -- -- -- -- --
B
20 C2001-HB20 38.00 44.00

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2002-H02 2.00 6.60
B-2
3 C2002-H03 4.00 8.60
4 C2002-H04 6.00 10.60
5 C2002-H05 8.00 12.60
9.25 6 C2002-H06 10.00 14.60
7 C2002-H07 12.00 16.60
8 C2002-H08 14.00 18.60
2.1 9 C2002-H09 16.00 20.60
10 C2002-H10 18.00 22.60
2.7 11 C2002-H11 20.00 24.60
12 C2002-H12 22.00 26.60
13 C2002-H13 24.00 28.60
2 14 C2002-H14 26.00 30.60
A 15 C2002-H15 28.00 32.60
B
16 C2002-H16 30.00 34.60

190 LIANHE ELECTRONICS CO.,LTD.
