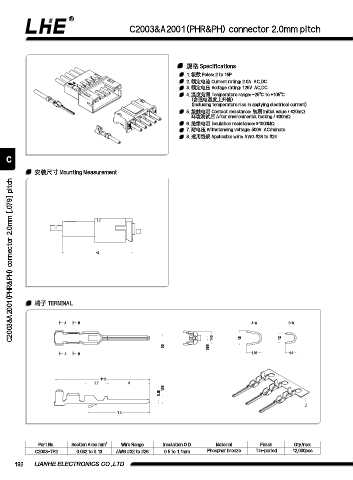

C2003&A2001(PHR&PH) connector 2.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 15P
2. 额定电流 Current rating: 2.0A AC,DC
3. 额定电压 Voltage rating: 125V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 500V AC/minute
8. 适⽤线规 Applicable wire: AWG #28 to #24

C

安装尺⼨ Mounting Measurement
C2003&A2001(PHR&PH) connector 2.0mm [.079] pitch

14

端⼦ TERMINAL

A B A-A B-B
1.45 1.8 1.2
0.5 0.68
A B 1.85 1.3

11.2
2.7 5
1.06
0.55

7.3

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2003-TP2 0.032 to 0.13 AWG #32 to #26 0.5 to 1.1mm Phosphor bronze Tin-plated 12,000pcs
