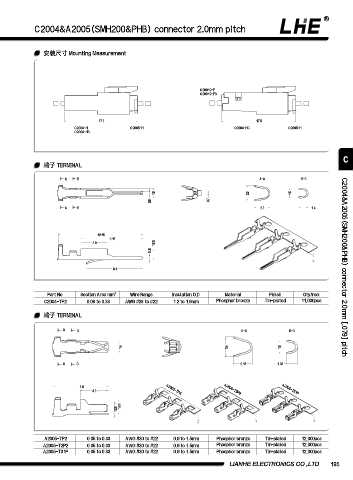

C2004&A2005(SMH200&PHB) connector 2.0mm pitch

安装尺⼨ Mounting Measurement

C20012-F
C20012-FB

17.3 17.5
C2004-H C2005-H C2004-HC C2005-H
C2004-HB

C
端⼦ TERMINAL

A B A-A B-B

1.5 2.3 1.5
0.5 0.7
A B 2.3 1.4

12.55
9.15
3.9 1.65
0.5

8.4 C2004&A2005(SMH200&PHB) connector 2.0mm [.079] pitch

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2004-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 11,000pcs

端⼦ TERMINAL

C D C-C D-D

1.4 2.4 1.6

C D 2.15 1.35

6.5
3.3 A2005-TP2 A2005-T2P2 A2005-T31P

1.25 1.85

A2005-TP2 0.05 to 0.33 AWG #30 to #22 0.9 to 1.5mm Phosphor bronze Tin-plated 12,000pcs
A2005-T2P2 0.05 to 0.33 AWG #30 to #22 0.9 to 1.5mm Phosphor bronze Tin-plated 12,000pcs
A2005-T31P 0.05 to 0.33 AWG #30 to #22 0.9 to 1.5mm Phosphor bronze Tin-plated 12,000pcs

LIANHE ELECTRONICS CO.,LTD. 195
