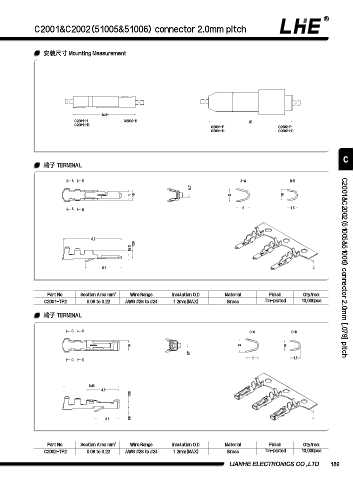

C2001&C2002(51005&51006) connector 2.0mm pitch

安装尺⼨ Mounting Measurement

14.81
C2001-H C2002-H 20
C2001-HB
C2001-P C2002-P
C2001-H C2002-HC

C
端⼦ TERMINAL

A B A-A B-B
0.7
1 1.5 2 1.6
2 1.5
A B

8.7
1.25
0.42

5.5 C2001&C2002(51005&51006) connector 2.0mm [.079] pitch

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2001-TP2 0.08 to 0.22 AWG #28 to #24 1.2mm(MAX) Brass Tin-plated 13,000pcs

端⼦ TERMINAL

C D C-C D-D

1.5 2 1.6
0.7
2 1.5
C D

8.35
4.8
1.25

3.6 0.5

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2002-TP2 0.08 to 0.22 AWG #28 to #24 1.2mm(MAX) Brass Tin-plated 13,000pcs

LIANHE ELECTRONICS CO.,LTD. 189
