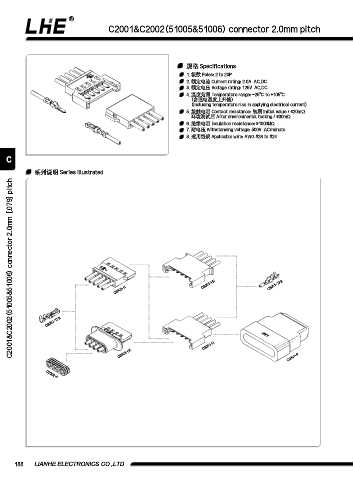

C2001&C2002(51005&51006) connector 2.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 20P
2. 额定电流 Current rating: 2.0A AC,DC
3. 额定电压 Voltage rating: 125V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 500V AC/minute
8. 适⽤线规 Applicable wire: AWG #28 to #24

C

系列说明 Series illustrated
C2001&C2002(51005&51006) connector 2.0mm [.079] pitch

C2001-HB C2001-TP2
C2002-H

C2002-TP2

C2001-H
C2002-HC C2001-P

C2002-P

188 LIANHE ELECTRONICS CO.,LTD.
