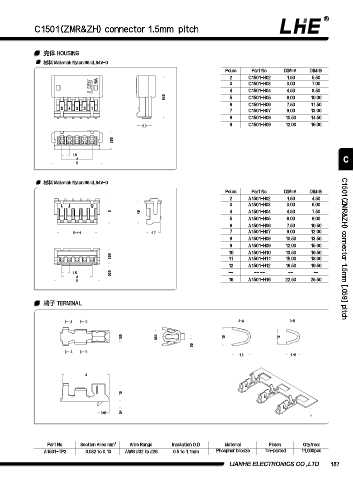

C1501(ZMR&ZH) connector 1.5mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C1501-H02 1.50 5.50
3 C1501-H03 3.00 7.00
4 C1501-H04 4.50 8.50
8.45 5 C1501-H05 6.00 10.00
6 C1501-H06 7.50 11.50
7 C1501-H07 9.00 13.00
8 C1501-H08 10.50 14.50
2.9 9 C1501-H09 12.00 16.00

3.65

1.5
A C
B

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A1501-H02 1.50 4.50
3 A1501-H03 3.00 6.00
4.6
5 4 A1501-H04 4.50 7.50
5 A1501-H05 6.00 9.00
6 A1501-H06 7.50 10.50
B-1.1 2.7 7 A1501-H07 9.00 12.00
8 A1501-H08 10.50 13.50
9 A1501-H09 12.00 15.00
10 A1501-H10 13.50 16.50 C1501(ZMR&ZH) connector 1.5mm [.059] pitch
3.05 11 A1501-H11 15.00 18.00
12 A1501-H12 16.50 19.50
1.5 0.35 -- -- -- -- --
A
B 16 A1501-H16 22.50 25.50

端⼦ TERMINAL

A B A-A B-B

1.05 0.83 1.6 1.3
0.5
A B
1.6 1.15

4

1.5

0.95 0.4

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A1501-TP2 0.032 to 0.13 AWG #32 to #26 0.5 to 1.1mm Phosphor bronze Tin-plated 11,000pcs

LIANHE ELECTRONICS CO.,LTD. 187
