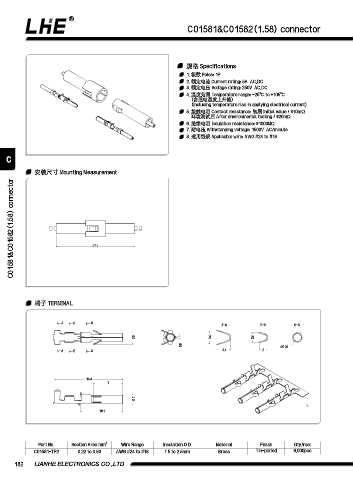

C01581&C01582(1.58) connector

规格 Specifications
1. 极数 Poles: 1P
2. 额定电流 Current rating: 5A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适⽤线规 Applicable wire: AWG #24 to #18

C

安装尺⼨ Mounting Measurement
C01581&C01582(1.58) connector 37.2

端⼦ TERMINAL

A B C A-A B-B C-C
3.3 3.4 2.4
0.6 2.25
3.4 2
A B C

16.3
7

2
Ø
10.1

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C01581-TP2 0.22 to 0.83 AWG #24 to #18 1.5 to 2.5mm Brass Tin-plated 6,000pcs
