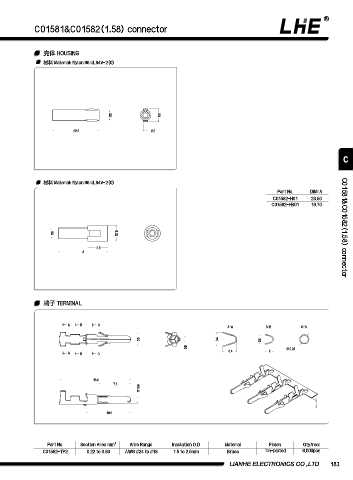

C01581&C01582(1.58) connector

壳体 HOUSING
材料 Material: Nylon 66 UL94V-2(0)

5 6.3

22.2 2.2

C

材料 Material: Nylon 66 UL94V-2(0)
Part No. DIM=A
C01582-H01 23.50
C01582-HB01 19.70

5 7.5 C01581&C01582(1.58) connector

9.5
A

端⼦ TERMINAL

A B C
A-A B-B C-C
3.3 3.4 2.4
0.6 2.25
A B C 3.4 2

16.8
7.6
1.58
Ø

10.6

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C01582-TP2 0.22 to 0.83 AWG #24 to #18 1.5 to 2.5mm Brass Tin-plated 6,000pcs

LIANHE ELECTRONICS CO.,LTD. 183
