P. 183
®

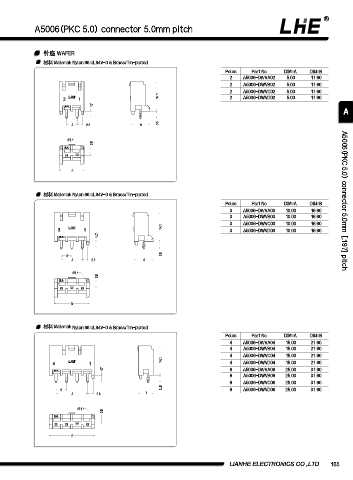

A5006(PKC 5.0) connector 5.0mm pitch
针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A5006-DWVA02 5.00 11.60
2 A5006-DWVB02 5.00 11.60
2 A5006-DWVC02 5.00 11.60
14.1 2 A5006-DWVD02 5.00 11.60
1.7
A
A 2.6 9 3.5
1.1
3.6
B
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B A5006(PKC 5.0) connector 5.0mm [.197] pitch
3 A5006-DWVA03 10.00 16.60
3 A5006-DWVB03 10.00 16.60
3 A5006-DWVC03 10.00 16.60
14.1 3 A5006-DWVD03 10.00 16.60
1.7
3.5
5
A 2.6 9
1.1
3.6
B
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
4 A5006-DWVA04 15.00 21.60
4 A5006-DWVB04 15.00 21.60
4 A5006-DWVC04 15.00 21.60
14.1 4 A5006-DWVD04 15.00 21.60
1.7 6 A5006-DWVA06 25.00 31.60
6 A5006-DWVB06 25.00 31.60
6 A5006-DWVC06 25.00 31.60
3.5
5 6 A5006-DWVD06 25.00 31.60
A 2.6 7
1.1
3.6
B
LIANHE ELECTRONICS CO.,LTD. 165
