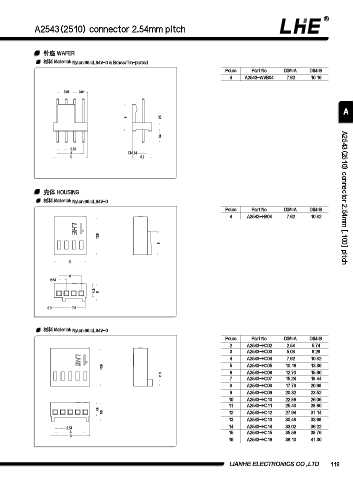

A2543(2510) connector 2.54mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
4 A2543-WVB04 7.62 10.16

5.08 3.81

A
8 2.5

3.4

2.54
A  0.64
B 5.7

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0 A2543(2510) connector 2.54mm [.100] pitch
Poles Part No. DIM=A DIM=B
4 A2543-HB04 7.62 10.82

12.9
8

B

A
2.54
4.8 6

2.9 7.6

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A2543-HC02 2.54 5.74
3 A2543-HC03 5.08 8.28
4 A2543-HC04 7.62 10.82
12.9 5 A2543-HC05 10.16 13.36
6 A2543-HC06 12.70 15.90
2.3
7 A2543-HC07 15.24 18.44
8 A2543-HC08 17.78 20.98
9 A2543-HC09 20.32 23.52
10 A2543-HC10 22.86 26.06
11 A2543-HC11 25.40 28.60
4.8
6.5 12 A2543-HC12 27.94 31.14
13 A2543-HC13 30.48 33.68
2.54 14 A2543-HC14 33.02 36.22
A 15 A2543-HC15 35.56 38.76
B
16 A2543-HC16 38.10 41.30

LIANHE ELECTRONICS CO.,LTD. 119
