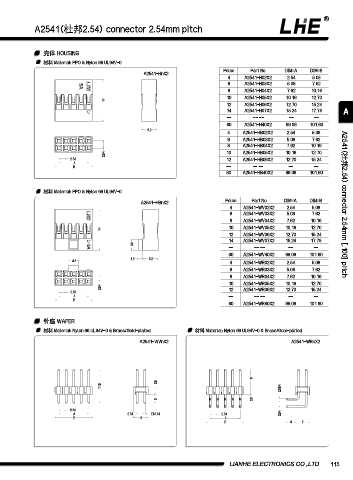

A2541(杜邦2.54) connector 2.54mm pitch

壳体 HOUSING
材料 Material: PPO & Nylon 66 UL94V-0

A2541-HnX2 Poles Part No. DIM=A DIM=B
4 A2541-H02X2 2.54 5.08
6 A2541-H03X2 5.08 7.62
8 A2541-H04X2 7.62 10.16
10 A2541-H05X2 10.16 12.70
14
12 A2541-H06X2 12.70 15.24
14 A2541-H07X2 15.24 17.78 A
-- -- -- -- --
80 A2541-H40X2 99.06 101.60
5.2
4 A2541-HB02X2 2.54 5.08
6 A2541-HB03X2 5.08 7.62
8 A2541-HB04X2 7.62 10.16
2.54 10 A2541-HB05X2 10.16 12.70
2.54 12 A2541-HB06X2 12.70 15.24
A
B -- -- -- -- --
80 A2541-HB40X2 99.06 101.60

材料 Material: PPO & Nylon 66 UL94V-0
A2541-HBnX2 Poles Part No. DIM=A DIM=B
4 A2541-WV02X2 2.54 5.08 A2541(杜邦2.54) connector 2.54mm [.100] pitch
6 A2541-WV03X2 5.08 7.62
8 A2541-WV04X2 7.62 10.16
10 A2541-WV05X2 10.16 12.70
14
12 A2541-WV06X2 12.70 15.24
14 A2541-WV07X2 15.24 17.78
3.8
-- -- -- -- --
80 A2541-WV40X2 99.06 101.60
3.5 1.5 5.2
4 A2541-WR02X2 2.54 5.08
6 A2541-WR03X2 5.08 7.62
8 A2541-WR04X2 7.62 10.16
10 A2541-WR05X2 10.16 12.70
2.54 12 A2541-WR06X2 12.70 15.24
2.54
A -- -- -- -- --
B
80 A2541-WR40X2 99.06 101.60

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Gold-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Gold-plated
A2541-WVnX2 A2541-WRnX2

6
2.5
11.5 0.64

2.5
3
2.54
A 2.54  0.64 2.54 2.54
B 5 A
B 3 5
