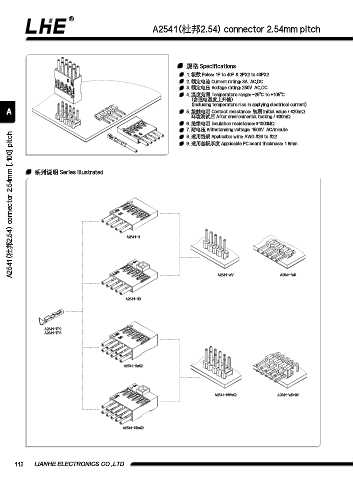

A2541(杜邦2.54) connector 2.54mm pitch

规格 Specifications
1. 极数 Poles: 1P to 40P & 2PX2 to 40PX2
2. 额定电流 Current rating: 3A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
A2541(杜邦2.54) connector 2.54mm [.100] pitch
8. 适⽤线规 Applicable wire: AWG #26 to #22
9. 适⽤基板厚度 Applicable PC board thickness: 1.6mm

系列说明 Series illustrated

A2541-H

A2541-WV A2541-WR

A2541-HB

A2541-TP2
A2541-TP8

A2541-HnX2

A2541-WVnX2 A2541-WRnX2

A2541-HBnX2
