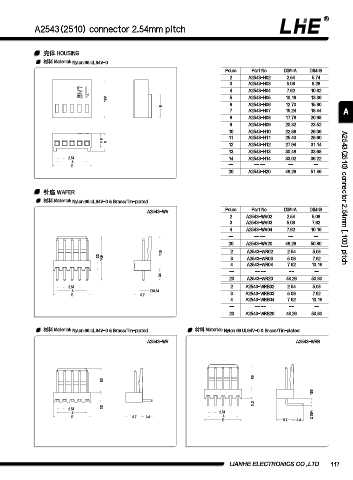

A2543(2510) connector 2.54mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A2543-H02 2.54 5.74
3 A2543-H03 5.08 8.28
4 A2543-H04 7.62 10.82
12.9 5 A2543-H05 10.16 13.36
6 A2543-H06 12.70 15.90
8
7 A2543-H07 15.24 18.44 A
8 A2543-H08 17.78 20.98
9 A2543-H09 20.32 23.52
10 A2543-H10 22.86 26.06
11 A2543-H11 25.40 28.60
4.8 6
12 A2543-H12 27.94 31.14
13 A2543-H13 30.48 33.68
2.54 14 A2543-H14 33.02 36.22
A
B -- -- -- -- --
20 A2543-H20 48.26 51.46

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated A2543(2510) connector 2.54mm [.100] pitch
A2543-WV Poles Part No. DIM=A DIM=B
2 A2543-WV02 2.54 5.08
3 A2543-WV03 5.08 7.62
4 A2543-WV04 7.62 10.16
-- -- -- -- --
20 A2543-WV20 48.26 50.80
11.5 2 A2543-WR02 2.54 5.08
3.2
14.9 3 A2543-WR03 5.08 7.62
4 A2543-WR04 7.62 10.16
-- -- -- -- --
3.4
20 A2543-WR20 48.26 50.80
2.54 2 A2543-WRB02 2.54 5.08
A  0.64
B 5.7 3 A2543-WRB03 5.08 7.62
4 A2543-WRB04 7.62 10.16
-- -- -- -- --
20 A2543-WRB20 48.26 50.80

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A2543-WR A2543-WRB

8.3
8.3
1.65
3.2
3.2
2.54
A 2.54 0.64
B 5.7 3.4 A 
B 5.7 3.4

LIANHE ELECTRONICS CO.,LTD. 117
