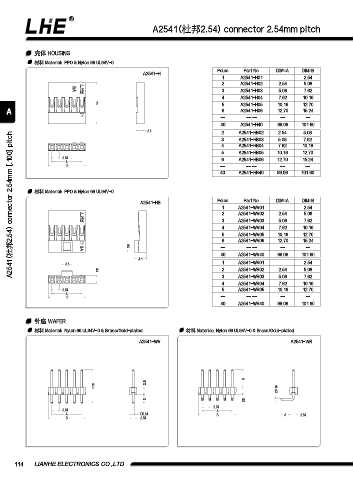

A2541(杜邦2.54) connector 2.54mm pitch

壳体 HOUSING
材料 Material: PPO & Nylon 66 UL94V-0

A2541-H Poles Part No. DIM=A DIM=B
1 A2541-H01 2.54
2 A2541-H02 2.54 5.08
3 A2541-H03 5.08 7.62
4 A2541-H04 7.62 10.16
14 5 A2541-H05 10.16 12.70
A 6 A2541-H06 12.70 15.24
-- -- -- -- --
40 A2541-H40 99.06 101.60
2.6
2 A2541-HB02 2.54 5.08
A2541(杜邦2.54) connector 2.54mm [.100] pitch
3 A2541-HB03 5.08 7.62
4 A2541-HB04 7.62 10.16
5 A2541-HB05 10.16 12.70
2.54
A 6 A2541-HB06 12.70 15.24
B -- -- -- -- --
40 A2541-HB40 99.06 101.60

材料 Material: PPO & Nylon 66 UL94V-0
A2541-HB Poles Part No. DIM=A DIM=B
1 A2541-WV01 2.54
2 A2541-WV02 2.54 5.08
3 A2541-WV03 5.08 7.62
4 A2541-WV04 7.62 10.16
5 A2541-WV05 10.16 12.70
6 A2541-WV06 12.70 15.24
3.8 -- -- -- -- --
40 A2541-WV40 99.06 101.60
4.1
1 A2541-WR01 2.54
3.5
2.6 2 A2541-WR02 2.54 5.08
3 A2541-WR03 5.08 7.62
4 A2541-WR04 7.62 10.16
2.54 5 A2541-WR05 10.16 12.70
A
B -- -- -- -- --
40 A2541-WR40 99.06 101.60

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Gold-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Gold-plated
A2541-WV A2541-WR

6
2.5
11.5 0.64

2.5
3
2.54
2.54 A
A  0.64 B 3 2.54
B 2.54

114 LIANHE ELECTRONICS CO.,LTD.
