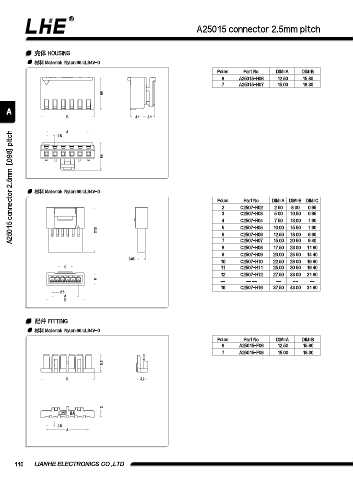

A25015 connector 2.5mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
6 A25015-H06 12.50 15.80
7 A25015-H07 15.00 18.30
9.5

A
B 4.1 3.1

A
A25015 connector 2.5mm [.098] pitch
2.5

8.4

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B DIM=C
2 C2507-H02 2.50 8.00 0.95
3 C2507-H03 5.00 10.50 0.95
4 C2507-H04 7.50 13.00 1.90
5 C2507-H05 10.00 15.50 1.90
21.2
6 C2507-H06 12.50 18.00 6.90
7 C2507-H07 15.00 20.50 9.40
8 C2507-H08 17.50 23.00 11.90
9 C2507-H09 20.00 25.50 14.40
3.85 10 C2507-H10 22.50 28.00 16.90
C 11 C2507-H11 25.00 30.50 19.40
12 C2507-H12 27.50 33.00 21.90
6
-- -- -- -- -- --
16 C2507-H16 37.50 43.00 31.90
2.5
A
B

配件 FITTING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
6 A25015-F06 12.50 15.80
7 A25015-F08 15.00 18.30
5.3

B 3.2

2

2.5
A
