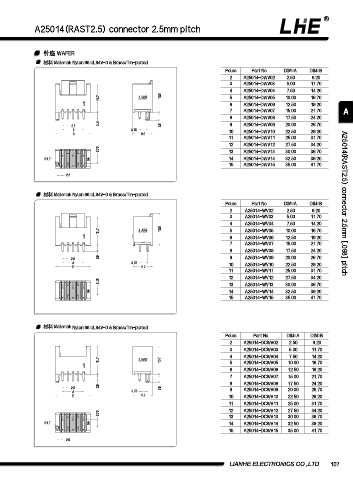

A25014(RAST2.5) connector 2.5mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A25014-DWV02 2.50 9.20
3 A25014-DWV03 5.00 11.70
4 A25014-DWV04 7.50 14.20
13.7 15.5 5 A25014-DWV05 10.00 16.70
6 A25014-DWV06 12.50 19.20
7 A25014-DWV07 15.00 21.70 A
8 A25014-DWV08 17.50 24.20
2.9 9 A25014-DWV09 20.00 26.70
2.5 3.8
A 3.75
B 9.2 10 A25014-DWV10 22.50 29.20
11 A25014-DWV11 25.00 31.70
12 A25014-DWV12 27.50 34.20
3.75 13 A25014-DWV13 30.00 36.70
1.7 14 A25014-DWV14 32.50 39.20
15 A25014-DWV15 35.00 41.70
2.5

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B A25014(RAST2.5) connector 2.5mm [.098] pitch
2 A25014-WV02 2.50 9.20
3 A25014-WV03 5.00 11.70
4 A25014-WV04 7.50 14.20
13.7 15.5 5 A25014-WV05 10.00 16.70
6 A25014-WV06 12.50 19.20
7 A25014-WV07 15.00 21.70
8 A25014-WV08 17.50 24.20
2.5 2.9 9 A25014-WV09 20.00 26.70
A 3.75 10 A25014-WV10 22.50 29.20
B 9.2
11 A25014-WV11 25.00 31.70
12 A25014-WV12 27.50 34.20
3.75 13 A25014-WV13 30.00 36.70
14 A25014-WV14 32.50 39.20
15 A25014-WV15 35.00 41.70

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A25014-DCWV02 2.50 9.20
3 A25014-DCWV03 5.00 11.70
4 A25014-DCWV04 7.50 14.20
13.7 13.7 5 A25014-DCWV05 10.00 16.70
6 A25014-DCWV06 12.50 19.20
7 A25014-DCWV07 15.00 21.70
8 A25014-DCWV08 17.50 24.20
2.9
2.5 3.8 9 A25014-DCWV09 20.00 26.70
A 3.75
B 9.2 10 A25014-DCWV10 22.50 29.20
11 A25014-DCWV11 25.00 31.70
12 A25014-DCWV12 27.50 34.20
3.75 13 A25014-DCWV13 30.00 36.70
1.7 14 A25014-DCWV14 32.50 39.20
15 A25014-DCWV15 35.00 41.70
2.5

LIANHE ELECTRONICS CO.,LTD. 107
