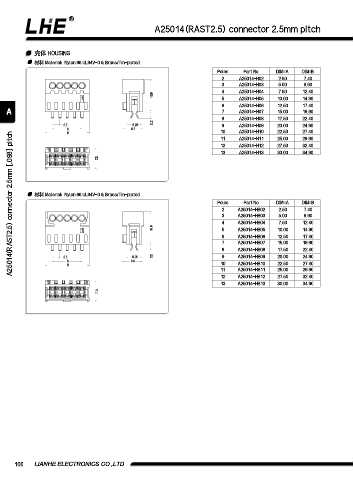

A25014(RAST2.5) connector 2.5mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A25014-H02 2.50 7.40
3 A25014-H03 5.00 9.90
4 A25014-H04 7.50 12.40
10.9 5 A25014-H05 10.00 14.90
6 A25014-H06 12.50 17.40
A 7 A25014-H07 15.00 19.90
8 A25014-H08 17.50 22.40
2.5 5.25 2.2 9 A25014-H09 20.00 24.90
A 6.6
B 10 A25014-H10 22.50 27.40
A25014(RAST2.5) connector 2.5mm [.098] pitch
11 A25014-H11 25.00 29.90
12 A25014-H12 27.50 32.40
13 A25014-H13 30.00 34.90
7.3

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A25014-HB02 2.50 7.40
3 A25014-HB03 5.00 9.90
4 A25014-HB04 7.50 12.40
10.9 5 A25014-HB05 10.00 14.90
6 A25014-HB06 12.50 17.40
7 A25014-HB07 15.00 19.90
8 A25014-HB08 17.50 22.40
2.5 5.25 2.2 9 A25014-HB09 20.00 24.90
A 6.6
B 10 A25014-HB10 22.50 27.40
11 A25014-HB11 25.00 29.90
12 A25014-HB12 27.50 32.40
13 A25014-HB13 30.00 34.90
7.3
