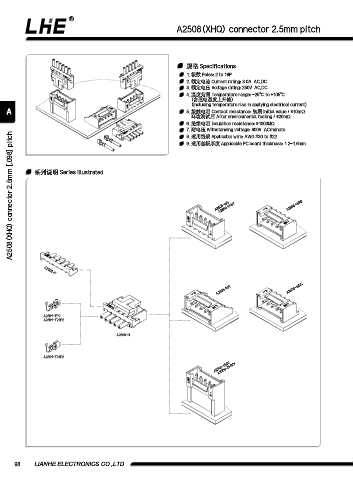

A2508(XHQ) connector 2.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 800V AC/minute
A2508(XHQ) connector 2.5mm [.098] pitch
8. 适⽤线规 Applicable wire: AWG #30 to #22
9. 适⽤基板厚度 Applicable PC board thickness: 1.2~1.6mm

系列说明 Series illustrated

A2508-WV A2508-WRB
A2508-DWV

A2508-F

A2508-WR A2508-WRC

A2501-TP2
A2501-T21P2

A2508-H

A2501-T31P2
A2508-HWV
A2508-DHWV
