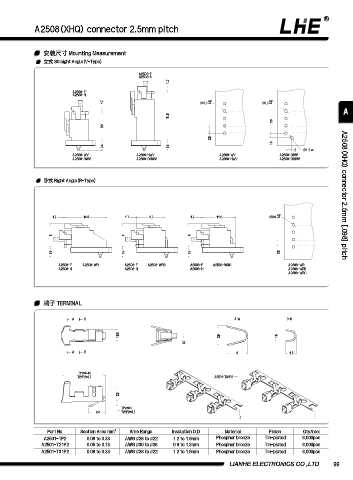

A2508(XHQ) connector 2.5mm pitch

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type)

A2508-F
A2508-H
1.7
A2508-F
A2508-H
1.7  0.9 0 + - 0.1  0.9 0 + - 0.1
A
16.8
2.5
9.9

2.5
1.6
3.4 3.4
2  1.1 0.1
A2508-WV A2508-HWV A2508-WV A2508-DWV
A2508-DWV A2508-DHWV A2508-HWV A2508-DHWV

卧式 Right Angle(R-Type) A2508(XHQ) connector 2.5mm [.098] pitch

+ 0.1
1.7 14.5 1.7 9.9 1.7 11.5  0.9 0 -

8 8 8

3.4 3.4 3.4 2.5

A2508-F A2508-WR A2508-F A2508-WRB A2508-F A2508-WRC A2508-WR
A2508-H A2508-H A2508-H A2508-WRB
A2508-WRC

端⼦ TERMINAL

A B A-A B-B

1.85 2.9 1.8
0.7
A B 3 1.5

TP2=6.45
T21P2= 6.3 A2501-T31P2

2.3

TP2=0.9
2.4 T21P2= 0.8

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2501-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 6,000pcs
A2501-T21P2 0.05 to 0.13 AWG #30 to #26 0.9 to 1.3mm Phosphor bronze Tin-plated 6,000pcs
A2501-T31P2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 6,000pcs

LIANHE ELECTRONICS CO.,LTD. 99
