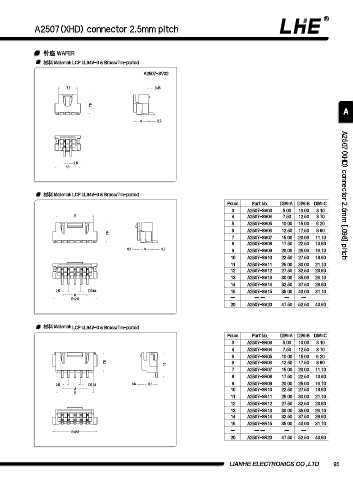

A2507(XHD) connector 2.5mm pitch

针座 WAFER
材料 Material: LCP UL94V-0 & Brass/Tin-plated

A2507-SV02

7.5 0.45

7.9
A
6 2.2

2.5
10

材料 Material: LCP UL94V-0 & Brass/Tin-plated A2507(XHD) connector 2.5mm [.098] pitch
Poles Part No. DIM=A DIM=B DIM=C
3 A2507-SV03 5.00 10.00 3.10
B 4 A2507-SV04 7.50 12.50 3.70
5 A2507-SV05 10.00 15.00 6.20
6 A2507-SV06 12.50 17.50 8.60
7.9
7 A2507-SV07 15.00 20.00 11.10
8 A2507-SV08 17.50 22.50 13.60
0.6 6 2.2 9 A2507-SV09 20.00 25.00 16.10
10 A2507-SV10 22.50 27.50 18.60
11 A2507-SV11 25.00 30.00 21.10
12 A2507-SV12 27.50 32.50 23.60
13 A2507-SV13 30.00 35.00 26.10
14 A2507-SV14 32.50 37.50 28.60
2.5  0.64 15 A2507-SV15 35.00 40.00 31.10
A
B+2.5 -- -- -- -- --
20 A2507-SV20 47.50 52.50 43.60

材料 Material: LCP UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C
3 A2507-SR03 5.00 10.00 3.10
4 A2507-SR04 7.50 12.50 3.70
5 A2507-SR05 10.00 15.00 6.20
7.8 6 A2507-SR06 12.50 17.50 8.60
10
7 A2507-SR07 15.00 20.00 11.10
8 A2507-SR08 17.50 22.50 13.60
9 A2507-SR09 20.00 25.00 16.10
2.5  0.64 0.6 6.1
A 10 A2507-SR10 22.50 27.50 18.60
B
11 A2507-SR11 25.00 30.00 21.10
12 A2507-SR12 27.50 32.50 23.60
13 A2507-SR13 30.00 35.00 26.10
14 A2507-SR14 32.50 37.50 28.60
15 A2507-SR15 35.00 40.00 31.10
B+2.5 -- -- -- -- --
20 A2507-SR20 47.50 52.50 43.60
