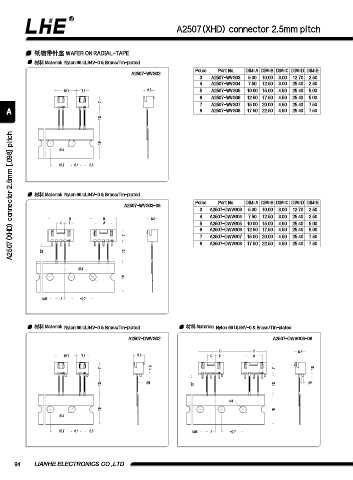

A2507(XHD) connector 2.5mm pitch

纸编带针座 WAFER ON RADIAL-TAPE
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A2507-WVG02 Poles Part No. DIM=A DIM=B DIM=C DIM=D DIM=E
3 A2507-WVG03 5.00 10.00 3.00 12.70 2.50
4 A2507-WVG04 7.50 12.50 3.00 25.40 2.50
12.7 7.5 6.5 5 A2507-WVG05 10.00 15.00 4.50 25.40 5.00
6 A2507-WVG06 12.50 17.50 4.50 25.40 5.00
7
7 A2507-WVG07 15.00 20.00 4.50 25.40 7.50
A 8 A2507-WVG08 17.50 22.50 4.50 25.40 7.50
12

A2507(XHD) connector 2.5mm [.098] pitch
18
4

12.7 5.1 2.5

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A2507-WVG03~08 Poles Part No. DIM=A DIM=B DIM=C DIM=D DIM=E
3 A2507-DWVG03 5.00 10.00 3.00 12.70 2.50
4 A2507-DWVG04 7.50 12.50 3.00 25.40 2.50
D B 6.5
C E A 5 A2507-DWVG05 10.00 15.00 4.50 25.40 5.00
6 A2507-DWVG06 12.50 17.50 4.50 25.40 5.00
7 7 A2507-DWVG07 15.00 20.00 4.50 25.40 7.50
8 A2507-DWVG08 17.50 22.50 4.50 25.40 7.50
2.7 12

4
18

3.85 5 12.7

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A2507-DWVG02 A2507-DWVG03~08

D B 6.5
12.7 7.5 6.5 C E A
1.5 1.5
7 7
 1  1
12 2.7 12

4
18 18
4

12.7 5.1 2.5 3.85 5 12.7
