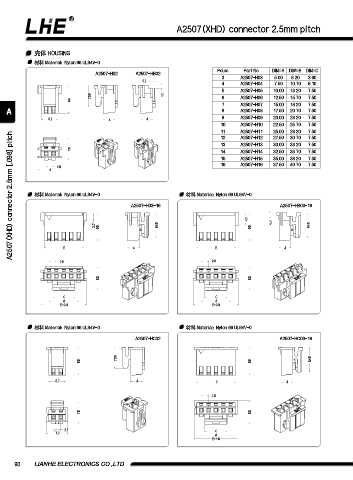

A2507(XHD) connector 2.5mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0

A2507-H02 A2507-HB02 Poles Part No. DIM=A DIM=B DIM=C
3 A2507-H03 5.00 8.20 3.60
2.2
4 A2507-H04 7.50 10.70 6.10
5 A2507-H05 10.00 13.20 7.50
7.25 1.1 6 A2507-H06 12.50 15.70 7.50
9.5
7 A2507-H07 15.00 18.20 7.50
A 8 A2507-H08 17.50 20.70 7.50
9 A2507-H09 20.00 23.20 7.50
5.7 4 4
10 A2507-H10 22.50 25.70 7.50
11 A2507-H11 25.00 28.20 7.50
A2507(XHD) connector 2.5mm [.098] pitch
12 A2507-H12 27.50 30.70 7.50
13 A2507-H13 30.00 33.20 7.50
7.8
14 A2507-H14 32.50 35.70 7.50
15 A2507-H15 35.00 38.20 7.50
2.5 16 A2507-H16 37.50 40.70 7.50
8

材料 Material: Nylon 66 UL94V-0 材料 Material: Nylon 66 UL94V-0

A2507-H03~16 A2507-HB03~16

4.1
2.7 9.5 8.45 9.5 1.1 8.45

B 4 B 4

2.5 2.5

8.2 8.2

C C
A A
B+2.3 B+2.3

材料 Material: Nylon 66 UL94V-0 材料 Material: Nylon 66 UL94V-0
A2507-HC02 A2507-HC03~16

7.25
9.5 9.5 8.45

5.7 4 B 4

2.5

7.8 8.2

2.5
7.3 C
A
B+1.6

90 LIANHE ELECTRONICS CO.,LTD.
