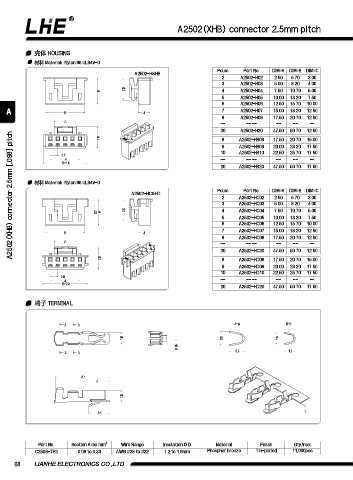

A2502(XHB) connector 2.5mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0

A2502-H&HB Poles Part No. DIM=A DIM=B DIM=C
2 A2502-H02 2.50 5.70 3.00
3 A2502-H03 5.00 8.20 4.00
7.5
9 4 A2502-H04 7.50 10.70 5.00
5 A2502-H05 10.00 13.20 7.50
6 A2502-H06 12.50 15.70 10.00
A B 4 7 A2502-H07 15.00 18.20 12.50
8 A2502-H08 17.50 20.70 12.50
C
-- -- -- -- -- --
20 A2502-H20 47.50 50.70 12.50
A2502(XHB) connector 2.5mm [.098] pitch
7.6 8 A2502-HB08 17.50 20.70 15.00
9 A2502-HB09 20.00 23.20 17.50
10 A2502-HB10 22.50 25.70 17.50
2.5
A -- -- -- -- -- --
B+1.6
20 A2502-HB20 47.50 50.70 17.50
材料 Material: Nylon 66 UL94V-0
A2502-HC&HD Poles Part No. DIM=A DIM=B DIM=C
2 A2502-HC02 2.50 5.70 3.00
3 A2502-HC03 5.00 8.20 4.00
2.7 9 7.5 4 A2502-HC04 7.50 10.70 5.00
5 A2502-HC05 10.00 13.20 7.50
6 A2502-HC06 12.50 15.70 10.00
B 4 7 A2502-HC07 15.00 18.20 12.50
8 A2502-HC08 17.50 20.70 12.50
C
-- -- -- -- -- --
20 A2502-HC20 47.50 50.70 12.50
7.6 8 A2502-HD08 17.50 20.70 15.00
9 A2502-HD09 20.00 23.20 17.50
10 A2502-HD10 22.50 25.70 17.50
2.5
A -- -- -- -- -- --
B+2.3
20 A2502-HD20 47.50 50.70 17.50
端⼦ TERMINAL

A B A-A B-B

1.9 2.3 1.8
0.85
A B 2.2 1.6

8.1
4

1.8

3.1

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2508-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 11,000pcs

68 LIANHE ELECTRONICS CO.,LTD.
