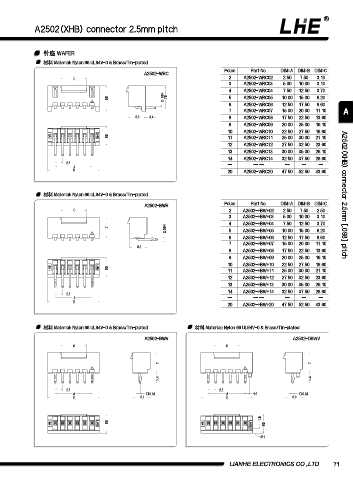

A2502(XHB) connector 2.5mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A2502-WRC Poles Part No. DIM=A DIM=B DIM=C
C 2 A2502-WRC02 2.50 7.50 3.10
3 A2502-WRC03 5.00 10.00 3.10
4 A2502-WRC04 7.50 12.50 3.70
0.64
8.6  7.8 5 A2502-WRC05 10.00 15.00 6.20
6 A2502-WRC06 12.50 17.50 8.60
7 A2502-WRC07 15.00 20.00 11.10 A
5.8 3.4 8 A2502-WRC08 17.50 22.50 13.60
9 A2502-WRC09 20.00 25.00 16.10
10 A2502-WRC10 22.50 27.50 18.60
6.5 11 A2502-WRC11 25.00 30.00 21.10
12 A2502-WRC12 27.50 32.50 23.60
13 A2502-WRC13 30.00 35.00 26.10
14 A2502-WRC14 32.50 37.50 28.60
2.5
A -- -- -- -- -- --
B 20 A2502-WRC20 47.50 52.50 43.60

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated A2502(XHB) connector 2.5mm [.098] pitch

A2502-BWR Poles Part No. DIM=A DIM=B DIM=C
C 2 A2502-*BW*02 2.50 7.50 2.50
3 A2502-*BW*03 5.00 10.00 3.10
4 A2502-*BW*04 7.50 12.50 3.70
0.64
7 5 A2502-*BW*05 10.00 15.00 6.20

6 A2502-*BW*06 12.50 17.50 8.60
7 A2502-*BW*07 15.00 20.00 11.10
5.8
8 A2502-*BW*08 17.50 22.50 13.60
9 A2502-*BW*09 20.00 25.00 16.10
10 A2502-*BW*10 22.50 27.50 18.60
6.5
11 A2502-*BW*11 25.00 30.00 21.10
12 A2502-*BW*12 27.50 32.50 23.60
13 A2502-*BW*13 30.00 35.00 26.10
14 A2502-*BW*14 32.50 37.50 28.60
2.5
A -- -- -- -- -- --
B
20 A2502-*BW*20 47.50 52.50 43.60

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A2502-BWV A2502-DBWV
C C

7 7

3.4 3.4

2.5 2.5
A  0.64 A 1.6  0.64
B 5.8 B 5.8

1.8
6.5 6.5

1
