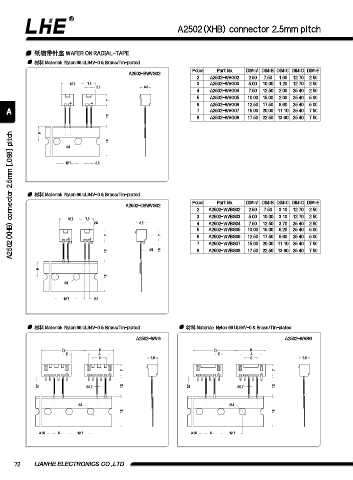

A2502(XHB) connector 2.5mm pitch

纸编带针座 WAFER ON RADIAL-TAPE
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A2502-BWVG02 Poles Part No. DIM=A DIM=B DIM=C DIM=D DIM=E
2 A2502-WVG02 2.50 7.50 1.00 12.70 2.50
12.7 7.5 3 A2502-WVG03 5.00 10.00 1.20 12.70 2.50
2.6 6.5
4 A2502-WVG04 7.50 12.50 2.00 25.40 2.50
5 A2502-WVG05 10.00 15.00 2.00 25.40 5.00
7
6 A2502-WVG06 12.50 17.50 8.60 25.40 5.00
A 7 A2502-WVG07 15.00 20.00 11.10 25.40 7.50
12 8 A2502-WVG08 17.50 22.50 13.60 25.40 7.50

A2502(XHB) connector 2.5mm [.098] pitch
9
18
4

12.7 2.5

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A2502-DBWVG02 Poles Part No. DIM=A DIM=B DIM=C DIM=D DIM=E
2 A2502-WVBG02 2.50 7.50 3.10 12.70 2.50
3 A2502-WVBG03 5.00 10.00 3.10 12.70 2.50
12.7 7.5
2.6 6.5 4 A2502-WVBG04 7.50 12.50 3.70 25.40 2.50
5 A2502-WVBG05 10.00 15.00 6.20 25.40 5.00
7 7 6 A2502-WVBG06 12.50 17.50 8.60 25.40 5.00
7 A2502-WVBG07 15.00 20.00 11.10 25.40 7.50
12  1 1.5 8 A2502-WVBG08 17.50 22.50 13.60 25.40 7.50

9
18
4

12.7 2.5

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A2502-WVG A2502-WVBG

D B D B
E A E A
C 6.5 C 6.5

7 7

2.7 0.7 12 2.7 0.7 12

4 4
18 18

3.85 5 12.7 3.85 5 12.7
