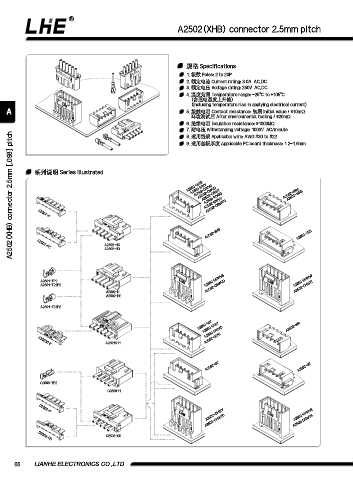

A2502(XHB) connector 2.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 20P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
A2502(XHB) connector 2.5mm [.098] pitch
8. 适⽤线规 Applicable wire: AWG #30 to #22
9. 适⽤基板厚度 Applicable PC board thickness: 1.2~1.6mm

系列说明 Series illustrated
A2502-WVB A2502-DWVD A2502-WRC
A2502-BWV
A2502-DWVB
A2502-DBWV
A2502-WRB
A2502-WVBG
A2502-BWVG
A2502-DBWVG
A2507-F
A2502-SVB A2502-SRB

A2502-HC
A2502-HD
A2507-FC

A2502-DHWVB A2502-DHWVF
A2501-TP2
A2501-T21P2 A2502-DHWVD A2502-DHWVI
A2502-H
A2502-HB
A2501-T31P2

A2502-WV A2502-WR
A2502-DWV
A2502-DWVC

A25015-H A2502-WVG
A25015-F

A2502-SV A2502-SR

C2508-TP2
C2508-H

A2502-DHWVE
A2502-DHWV
C2508-F
A2502-DHWVC A2502-DHWVH
C2508-SH
C2508-FB
