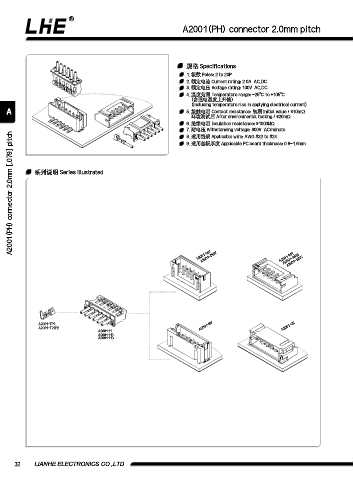

A2001(PH) connector 2.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 20P
2. 额定电流 Current rating: 2.0A AC,DC
3. 额定电压 Voltage rating: 100V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 800V AC/minute
A2001(PH) connector 2.0mm [.079] pitch
8. 适⽤线规 Applicable wire: AWG #32 to #24
9. 适⽤基板厚度 Applicable PC board thickness: 0.8~1.6mm

系列说明 Series illustrated

A2001-WV A2001-WR
A2001-DWV
A2001-WRB
A2001-WRC

A2001-TP2 A2001-SV
A2001-T21P2 A2001-SR
A2001-H
A2001-HB
A2001-HC
