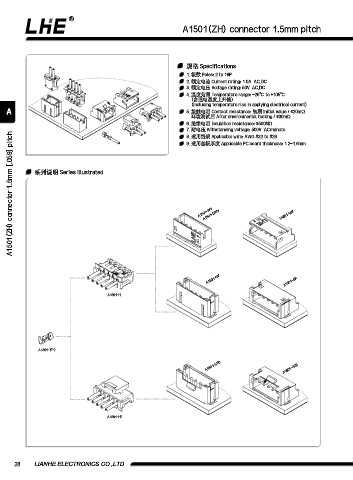

A1501(ZH) connector 1.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 1.0A AC,DC
3. 额定电压 Voltage rating: 50V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥500MΩ
7. 耐电压 Withstanding voltage: 500V AC/minute
A1501(ZH) connector 1.5mm [.059] pitch
8. 适⽤线规 Applicable wire: AWG #32 to #26
9. 适⽤基板厚度 Applicable PC board thickness: 1.2~1.6mm

系列说明 Series illustrated

A1501-WV A1501-WR
A1501-DWV

A1501-SV A1501-SR

A1501-H

A1501-TP2

A1501-SVB A1501-SRB

A1501-HB
