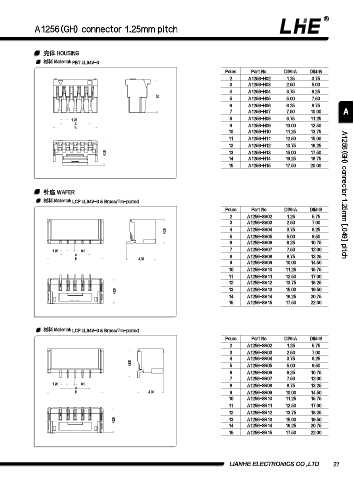

A1256(GH) connector 1.25mm pitch

壳体 HOUSING
材料 Material: PBT UL94V-0
Poles Part No. DIM=A DIM=B
2 A1256-H02 1.25 3.75
3 A1256-H03 2.50 5.00
4 A1256-H04 3.75 6.25
5.7 5 A1256-H05 5.00 7.50
6 A1256-H06 6.25 8.75
7 A1256-H07 7.50 10.00 A
8 A1256-H08 8.75 11.25
1.25
A 9 A1256-H09 10.00 12.50
B
10 A1256-H10 11.25 13.75
11 A1256-H11 12.50 15.00
12 A1256-H12 13.75 16.25
4.15 13 A1256-H13 15.00 17.50
14 A1256-H14 16.25 18.75
15 A1256-H15 17.50 20.00

针座 WAFER A1256(GH) connector 1.25mm [.049] pitch
材料 Material: LCP UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A1256-SV02 1.25 5.75
3 A1256-SV03 2.50 7.00
4.15 4 A1256-SV04 3.75 8.25
5 A1256-SV05 5.00 9.50
6 A1256-SV06 6.25 10.75
1.25 0.2 7 A1256-SV07 7.50 12.00
A 8 A1256-SV08 8.75 13.25
B 4.95
9 A1256-SV09 10.00 14.50
10 A1256-SV10 11.25 15.75
11 A1256-SV11 12.50 17.00
12 A1256-SV12 13.75 18.25
4.25 13 A1256-SV13 15.00 19.50
14 A1256-SV14 16.25 20.75
15 A1256-SV15 17.50 22.00

材料 Material: LCP UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A1256-SR02 1.25 5.75
3 A1256-SR03 2.50 7.00
4 A1256-SR04 3.75 8.25
4.85 5 A1256-SR05 5.00 9.50
6 A1256-SR06 6.25 10.75
7 A1256-SR07 7.50 12.00
1.25 0.2 8 A1256-SR08 8.75 13.25
A
B 4.35 9 A1256-SR09 10.00 14.50
10 A1256-SR10 11.25 15.75
11 A1256-SR11 12.50 17.00
12 A1256-SR12 13.75 18.25
4.25 13 A1256-SR13 15.00 19.50
14 A1256-SR14 16.25 20.75
15 A1256-SR15 17.50 22.00

LIANHE ELECTRONICS CO.,LTD. 27
