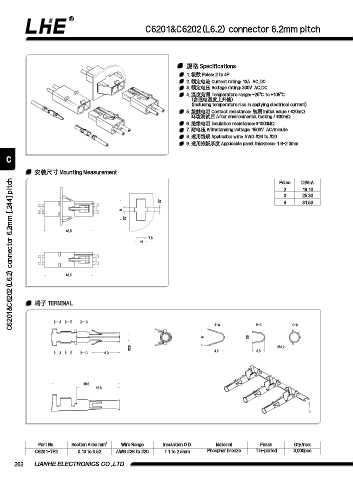

C6201&C6202(L6.2) connector 6.2mm pitch

规格 Specifications
1. 极数 Poles: 2 to 4P
2. 额定电流 Current rating: 13A AC,DC
3. 额定电压 Voltage rating: 300V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适⽤线规 Applicable wire: AWG #26 to #20
9. 适⽤嵌板厚度 Applicable panel thickness: 1.6~2.0mm

C

安装尺⼨ Mounting Measurement
C6201&C6202(L6.2) connector 6.2mm [.244] pitch
Poles DIM=A
2 19.10
3 25.30
3.7 4 31.50
A
3.7
43.5
7.8
11

43.5

端⼦ TERMINAL

A B C
A-A B-B C-C
3.5
5
2.5 3.2
A B C 8.3 Ø 4.9 3.8

20.2
12.8

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C6201-TP2 0.13 to 0.52 AWG #26 to #20 1.1 to 2.5mm Phosphor bronze Tin-plated 3,000pcs
