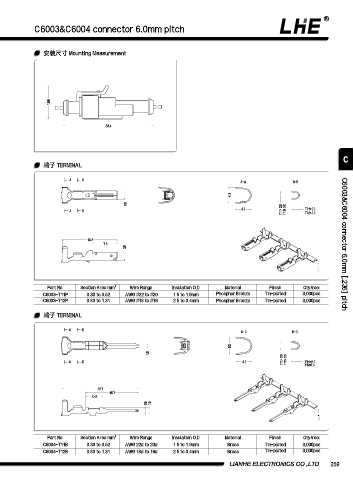

C6003&C6004 connector 6.0mm pitch

安装尺⼨ Mounting Measurement

19.9

53.4

C
端⼦ TERMINAL

A B
A-A B-B
4.8
2.6 2.5
4.7 T12=3.2 T11= 2.3
A B T11= T12=3.3

16.5
7.5 C6003&C6004 connector 6.0mm [.236] pitch
2.5

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C6003-T11P 0.33 to 0.52 AWG #22 to #20 1.5 to 1.9mm Phosphor Bronze Tin-plated 3,000pcs
C6003-T12P 0.83 to 1.31 AWG #18 to #16 2.5 to 3.4mm Phosphor Bronze Tin-plated 3,000pcs

端⼦ TERMINAL

C D
C-C D-D
5.2
1.5
2.5
C D 4.7 T11= T12=3.2 T11= 2.3
T12=3.3

22.7
15.7
5.15
0.8 1.8

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C6004-T11B 0.33 to 0.52 AWG 22# to 20# 1.5 to 1.9mm Brass Tin-plated 3,000pcs
C6004-T12B 0.83 to 1.31 AWG 18# to 16# 2.5 to 3.4mm Brass Tin-plated 3,000pcs
