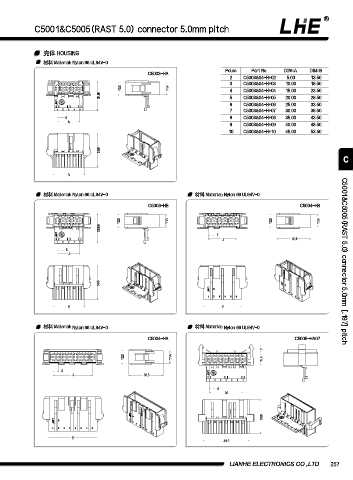

C5001&C5005(RAST 5.0) connector 5.0mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0

C5003-HA Poles Part No. DIM=A DIM=B
2 C5003&04-H*02 5.00 13.50
3 C5003&04-H*03 10.00 18.50
13.3 11.4 4 C5003&04-H*04 15.00 23.50
26.65 5 C5003&04-H*05 20.00 28.50

6 C5003&04-H*06 25.00 33.50
7 C5003&04-H*07 30.00 38.50
5 8 C5003&04-H*08 35.00 43.50
A
9 C5003&04-H*09 40.00 48.50
10 C5003&04-H*10 45.00 53.50

30.5
C

B

材料 Material: Nylon 66 UL94V-0 材料 Material: Nylon 66 UL94V-0

C5003-HB C5004-HB

13.3 11.4 13.3 11.4
26.65
5
A 30.5
5
A C5001&C5005(RAST 5.0) connector 5.0mm [.197] pitch

30.5

B B

材料 Material: Nylon 66 UL94V-0 材料 Material: Nylon 66 UL94V-0
C5004-HA C5005-HA07

7
13.3 11.4 11.4

5
A 30.5
5
30

30.5

B
41.8
