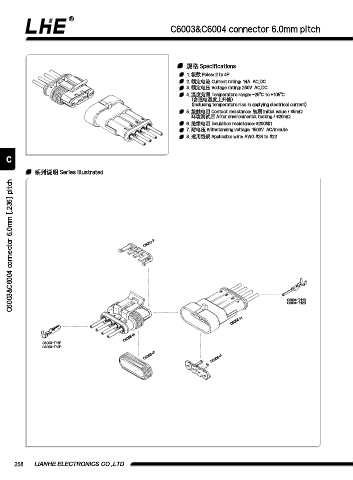

C6003&C6004 connector 6.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 4P
2. 额定电流 Current rating: 14A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤5mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥200MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适⽤线规 Applicable wire: AWG #28 to #22

C

系列说明 Series illustrated
C6003&C6004 connector 6.0mm [.236] pitch

C6003-F

C6004-T11B
C6004-T12B
C6004-H

C6003-H
C6003-T11P
C6003-T12P
C6003-P C6004-F
