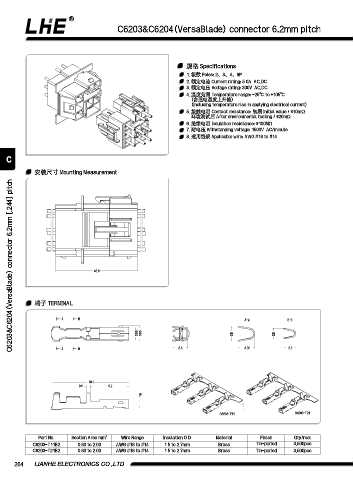

C6203&C6204(VersaBlade) connector 6.2mm pitch

规格 Specifications
1. 极数 Poles: 2、3、4、9P
2. 额定电流 Current rating: 5.0A AC,DC
3. 额定电压 Voltage rating: 300V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥100MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适⽤线规 Applicable wire: AWG #18 to #14

C

安装尺⼨ Mounting Measurement
C6203&C6204(VersaBlade) connector 6.2mm [.244] pitch

43.8

端⼦ TERMINAL

A B A-A B-B

3.05 3.65 3.6 2.6

A B 3.6 3.95 2.8

18.2
0.9 9.2
1.9

C6203-T11 C6203-T21

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C6203-T11B2 0.83 to 2.00 AWG #18 to #14 1.5 to 2.7mm Brass Tin-plated 3,500pcs
C6203-T21B2 0.83 to 2.00 AWG #18 to #14 1.5 to 2.7mm Brass Tin-plated 3,500pcs

264 LIANHE ELECTRONICS CO.,LTD.
